TRUSTED DESKTOP APPLICATION FOR DRILLING ENGINEERING
With a common interface engineers can quickly perform run simulations and create outputs for; T&D, Hydraulics, Survey Correction, Jar Placement, Cementing and Casing Centralizer Placement.
Torque & Drag
Proven torque & drag functionality that allows for both conservative (unloading) and standard (loading) buckling models, with an elemental view available for all computation results. Software fully supports casing, liner, drilling assemblies and complex 3D directional wells.
Hydraulics

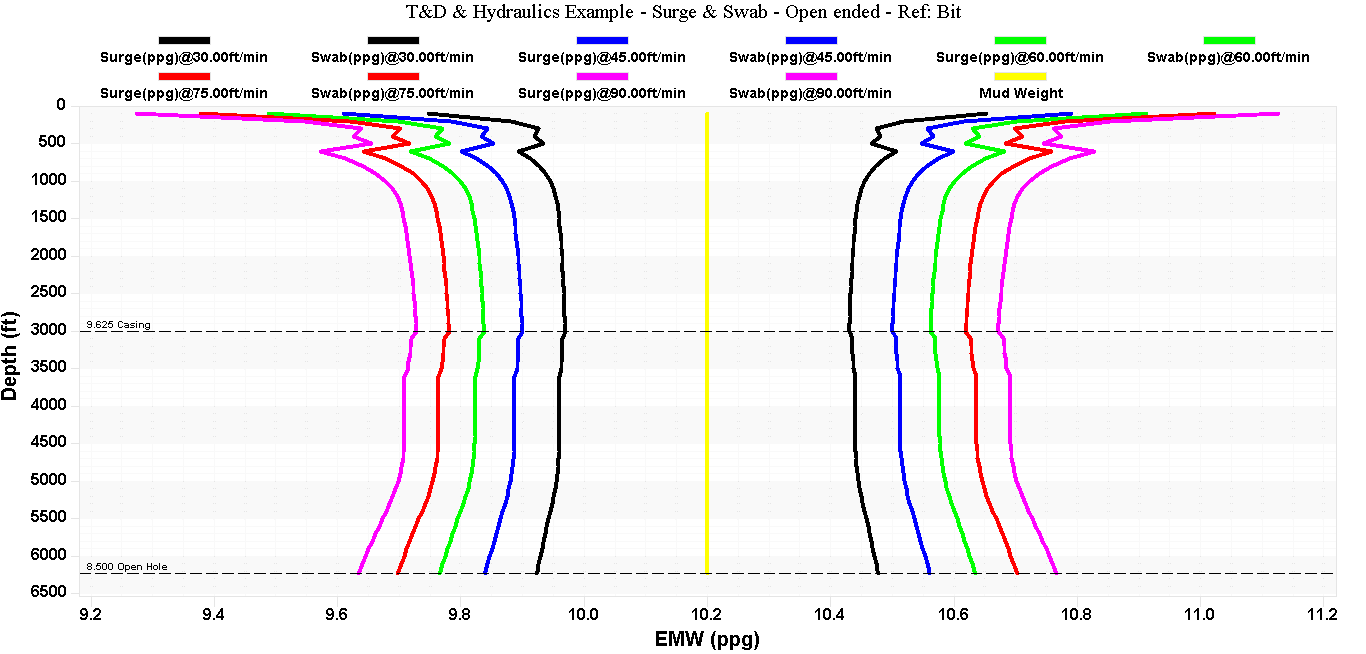

Advanced hydraulics modelling ensures optimal performance for a range of applications, from simple verticals to the most complex well configurations. Combining multiple rheological models, Innova’s hydraulics modelling is fit-for-purpose to evaluate complex wells including ERD. Centralized data storage allows for seamless company-wide communications, enhancing efficiency.
Survey Correction
Well path magnetic interference analysis, calculate the expected error in azimuth for a given amount of non mag spacing. Fully supports intermediate steel above and below the MWD sensor or both. Correct raw MWD surveys for Z axis mag interference with the latest short collar correction (SCC) algorithm. QC raw MWD surveys for G total, B total and magnetic dip with user definable limits. Multi Station Analysis (MSA) can be used to calculate an optimal bias and scale factor for XYZ magnetometers and accelerometers.
Jar Placement
Calculate neutral point road map which shows WOB to avoid at every depth along the well path. Calculates pump open force. Model the impact / impulse of all types of jars, accelerators & intensifiers. Optimize the hammer length / jar type to maximize impulse / impact. Calculates weight above and below jar when vertical and at bottom hole location in both air and mud.
Cementing

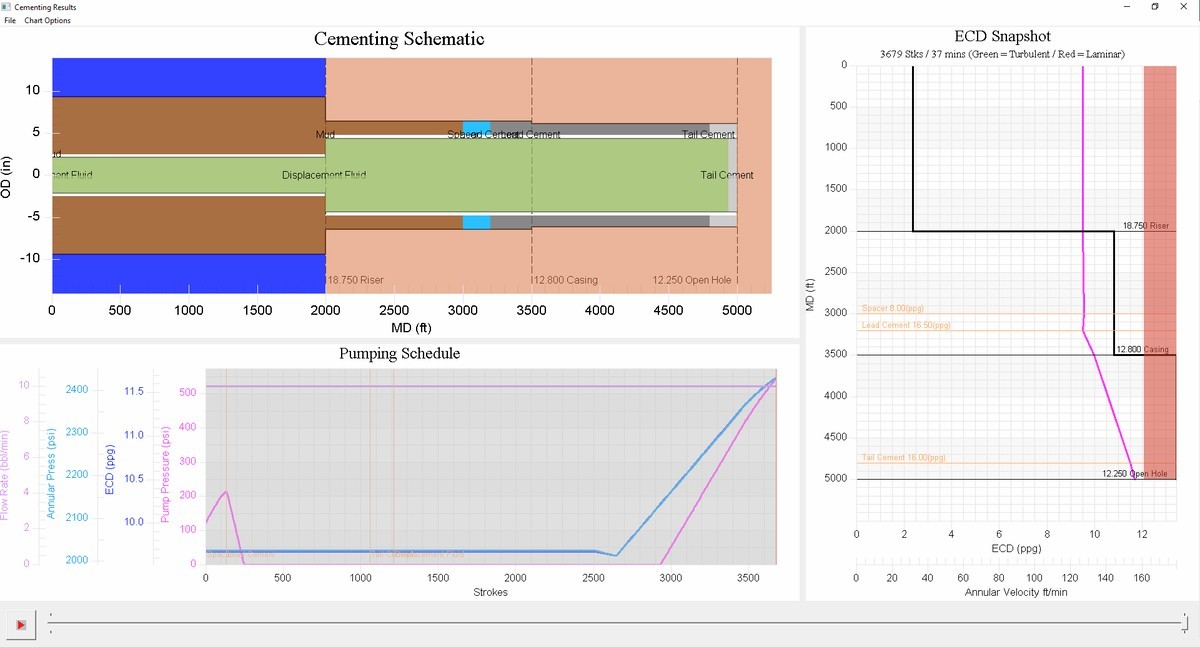

Cementing Schematic Animation provides a visual representation of the well geometry, string, and fluids at any given stage in the cement job. Calculate annular pressure, equivalent circulating density and pump pressure during cementing operations. User definable Pumping Schedule. Ability to model calculations with inner string. Select from Bingham, Power Law, Herschel Bulkley or Robertson Stiff Hydraulics Models. Calculate capacities and displacements. Calculate Top Down, Bottoms up and Full Circulation times.
Casing Standoff

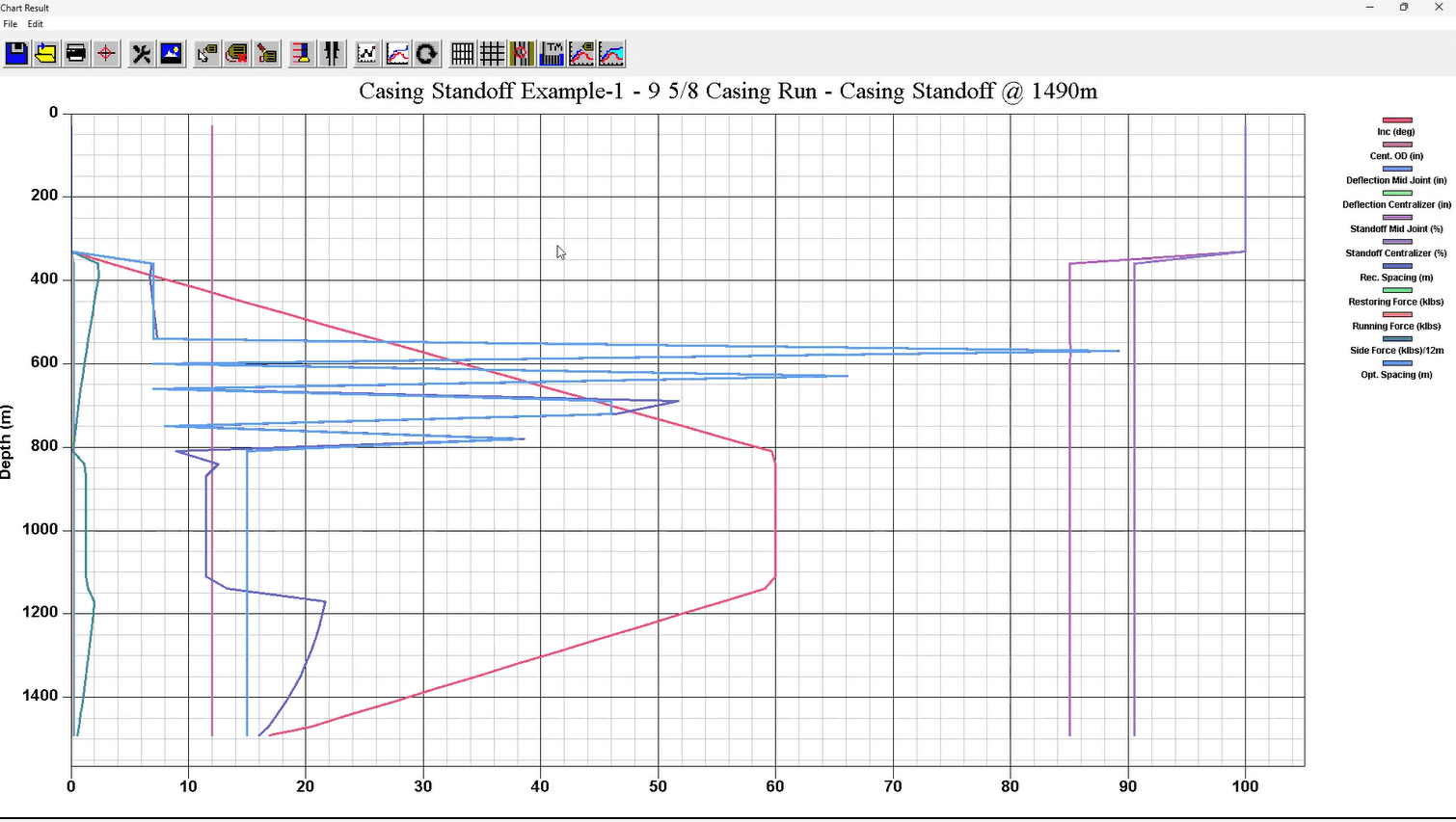

Model rigid and bow spring centralizers. Automatically optimize centralizer placement based on a desired standoff value. Calculate deflection at centralisers and mid joint. Ability to model bow spring running and restoring forces. Model the additional side force created by the compression of bow spring centralizers. One click standoff summary report, including tabulated results accompanied by standoff, side forces and hookload charts.
Torque & Drag
Hydraulics
Survey Correction
Jar Placement
Trusted Engineering

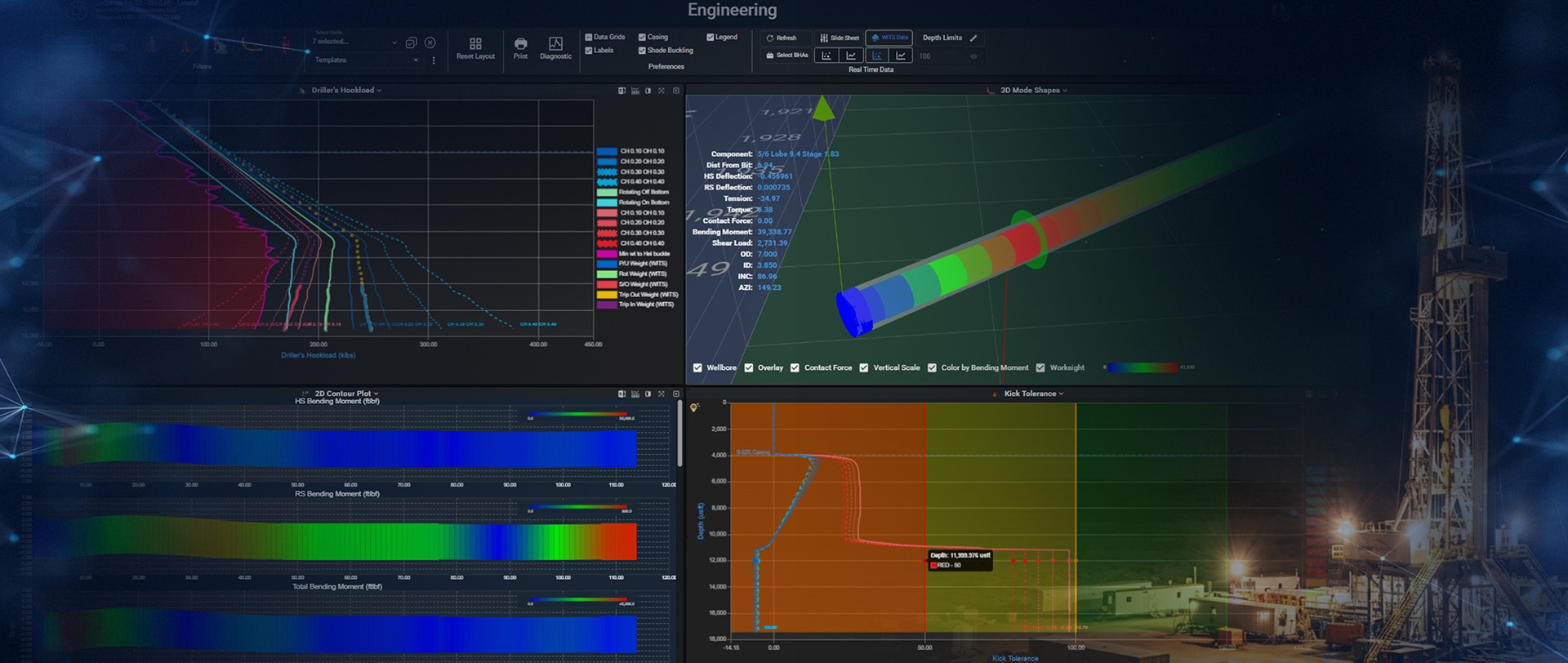

Innova Engineering provides an environment for drilling and performance optimization engineers to run engineering simulations such as T&D and Hydraulics.
Drillers Hookload Plots
Hookload plots act as a roadmap for drillers, enabling identification of issues such as wellbore instability and poor hole cleaning in real-time. Identification of issues at the earliest opportunity ensures that appropriate steps are taken to address the issue, towards safer and more efficient drilling opertations.
Tension On/Off Bottom

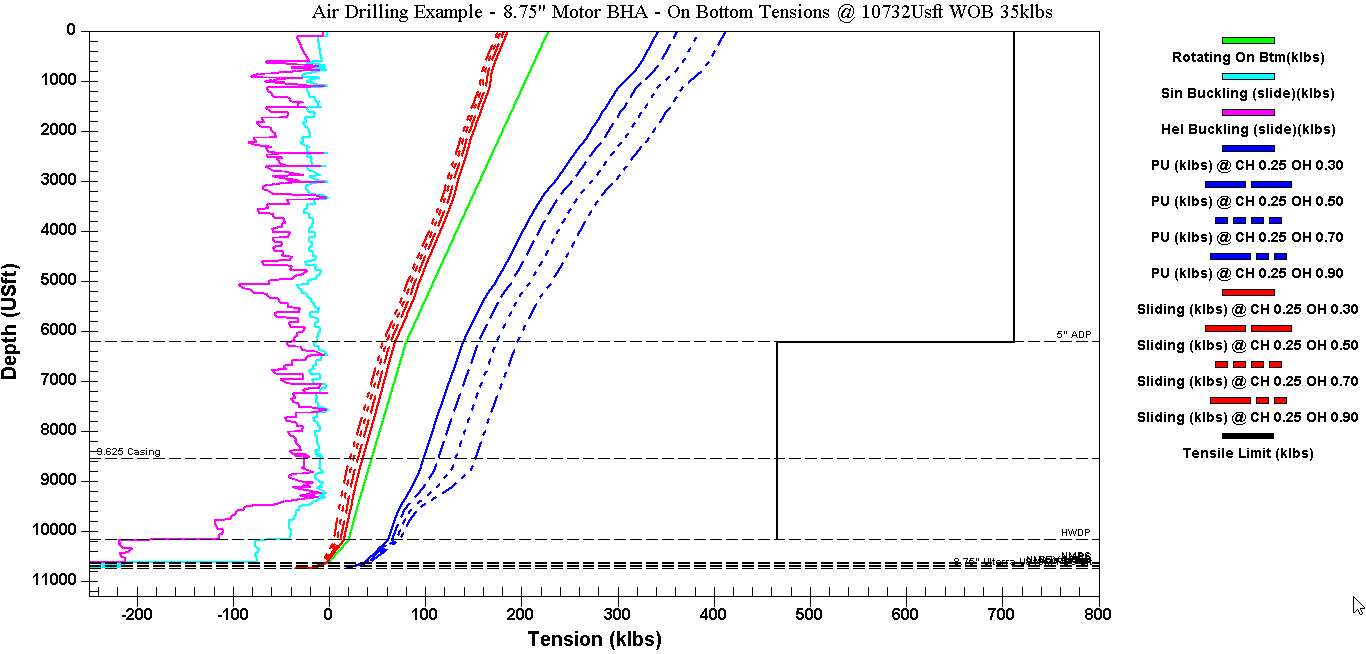

Identify the location of sinusidal and helical buckling in the drillstrng for tripping, sliding and rotating operations. These plots provide the information the user needs to ensure that drilling & casing assemblies are suitable for the operations planned.
Apparent Weight on Bit
Friction, wellbore geometry, hole cleaning and drilling fluids are all factors that can impact the transfer of weight from the surface to drill bit. This plot shows the WOB required at surface to achieve the desired WOB downhole, ensuring optimium WOB during drilling to optimize ROP & efficiency.
Side Forces
Understanding side forces is important for minimizing wear & tear on the drill string and casing to prevent buckling and ensure smooth drilling operations. It is imperative to consider side forces to design the well trajectory & select appropriate drilling parameters to reduce lateral stresses.
